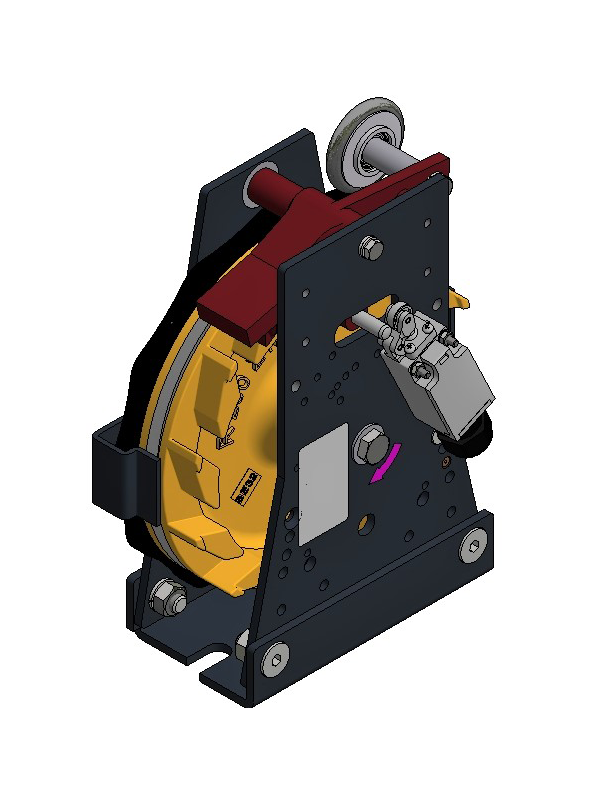

Overspeed Governor HJ 200 SB O-Z12

Overspeed Governor HJ 200 SB O - Z12


Type approved overspeed governor acc. to EU type examination certificate EU-OG 027 with governor wheel diameter 200 mm 12 safety cogs (asymmetrical) for activating the safety gear in one release directions, narrow base plate design, overhead arresting pendulum.


Technical datas:
Governor rope diameter: 6 – 6.5 mm
Max. Rated speed V max : 0,95 m/s
Tripping Speed V1: 0.50 – 1.16 m/s


Download Technische Zeichnung (PDF drawing only available in German)
